FIRE RATED DOORS

COMMERCIAL DOORS

METRO commercial steel doors are manufactured corresponding/adhering to the specifications set abroad with quality as its backbone and tested with internationally recognized laboratories such as UL and BS. As standard, the doors are 44 mm thick, made of premium galvanized metal sheets or Galvalume for the door panels (Ga18 or Ga20 depending on the requirements), doors are insulated with either Rockwool, honeycomb, Polyurethane foam or fiber glass for sound deadening, and most importantly, for fire retardant purposes. Door frames are fabricated from Ga16 premium galvanized metal sheets or Galvalume with 3 standard models. As standards, steel doors and frames are primer coat finished.

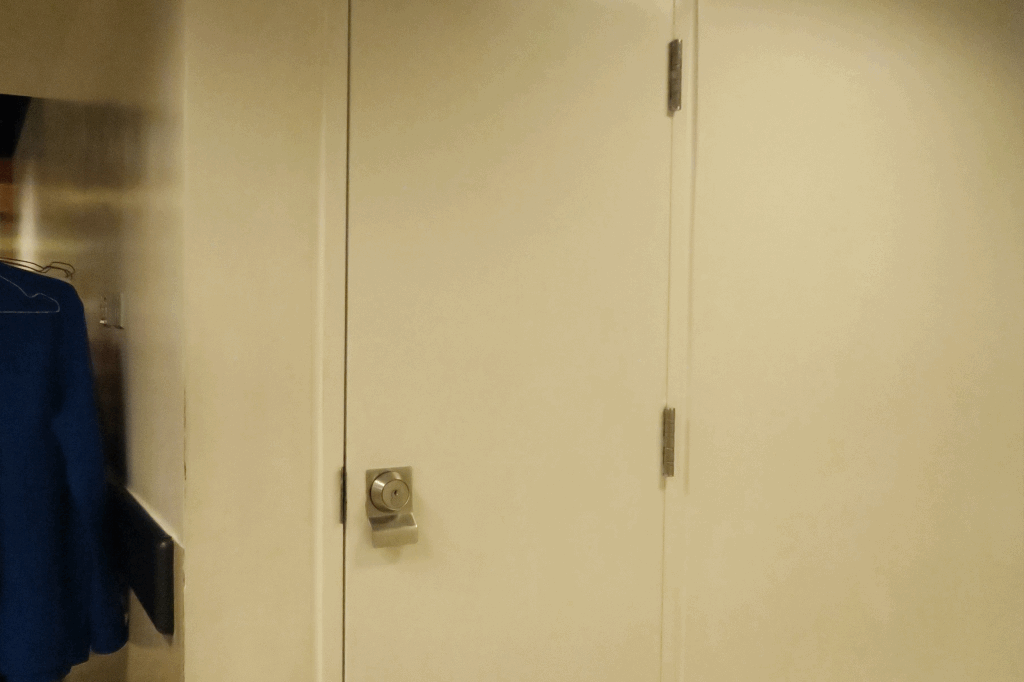

Flush/ Plain

The term “flush,” when used to describe a door type, refers to a door without glass or louvers. (PLAIN TYPE)

Half glass doors

Doors with glass located at the upper half of the door face;

In accordance with ANSI/ICC A117.1, doors containing one or more glass panels shall have the bottom of at least one glass panel a maximum of 43″ from the finished floor.

Full glass doors

A maximum 7″ rail and stile occur at the top and at the vertical edges of this door. An 8″ minimum rail occurs at the bottom.

To comply with ANSI/ICC A117.1 specification, the bottom rail shall be specified as minimum 10” measured vertically from the floor and shall be a smooth surface on the push side extending the full width of the door.

Narrow lite door

The glass cutout in these doors are located near the lockset. The width of the glass glass size and glass location from the finished floor to the glass opening will vary with the door size or specifications.

Louvered/ Grille door

There are a number of louvers and grilles available. The choice of which one to use must be determined by the architect on aesthetic, functional and economic grounds as well as fire protection. A louver is an opening in the door with a series of non-visionary slats or blades to allow passage of air. This louver frame is inserted into the opening in the door prepare to receive the louver. Fusible link louvers are used to control passage of flames and heat.

Full louvered door

Similar with Full Glass, louver doors are manufacture as standard a maximum 7″ rail and stile occur at the top and at the vertical edges of this door. An 8″ minimum rail occurs at the bottom.

To comply with ANSI/ICC A117.1 specification, the bottom rail shall be specified as minimum 10” measured vertically from the floor and shall be a smooth surface on the push side extending the full width of the door.

Glass-louvered door

A combination of glass lites and louvers.

METRO STYLE DOORS

• While Metro Style™ doors’ aesthetic beauty doesn’t reveal its strength, these doors are stronger, more secure, and less susceptible to damage than veneer or solid wood doors.
• Metro Style™ doors will never warp, crack, peel or bow.
• Metro Style™ doors are available with fire ratings to meet the requirements of the clients. With Metro Style™ doors, steel doors designed to substitute wooden doors can meet building and fire code requirements while also enhancing the aesthetic integrity or harmony of any building design.
• Metro Style™ doors with Embossed panels and Groove line in powder-coated or painted finish enables the steel door to resemble a wooden door. With the added stability of steel, it provides greater life safety protection and security while maintaining aesthetic beauty and elegance.
• Metro Style™ doors are compatible with a wider range of door hardware, including fire exit devices, concealed or surface mounted door closers, hinges, locks and other hardware.

Where Could Metro Style™ Doors Be Used? Metro Style™ doors are equally suited to both interior and exterior applications. It can be installed in condominiums, hotels, schools, hospitals, offices, nursing homes, apartment buildings, and other facilities that need to maintain design harmony without sacrificing elegance, durability and security. They are widely used as main doors, bedroom doors, stairwell doors, conference/meeting room doors, hospital doors, and classroom doors.

Properly selected and installed Metro Style™ doors provide all the warmth and beauty of a wooden door and make it last for several years. For applications that demand large measures of both style and strength, these doors combine the traditional values of wood with a heart osteel.

METROSHUTTERS

Dedication to Quality
Metroshutters™ are expertly machined and manufactured to exact tolerances – they are strong enough for absolute security and are designed for reliable, simple and speedy operation. All our doors are made with only the best quality materials to ensure that customers have the utmost security in their establishments. Backed by our one year warranty, Metroshutters™ are guaranteed to provide years of trouble-free operation.

Customized Manufacturing
Metroshutters™ are custom made to fit all your door requirements. Our sales and engineering staff are always on hand to help you decide the appropriate materials, operation, finish, and installation method for your doors. Here at Metrotech, we make it our job to consider architectural parameters, construction timetables, budgets, and usage and safety – every relevant factorto manufacture your ideal door.

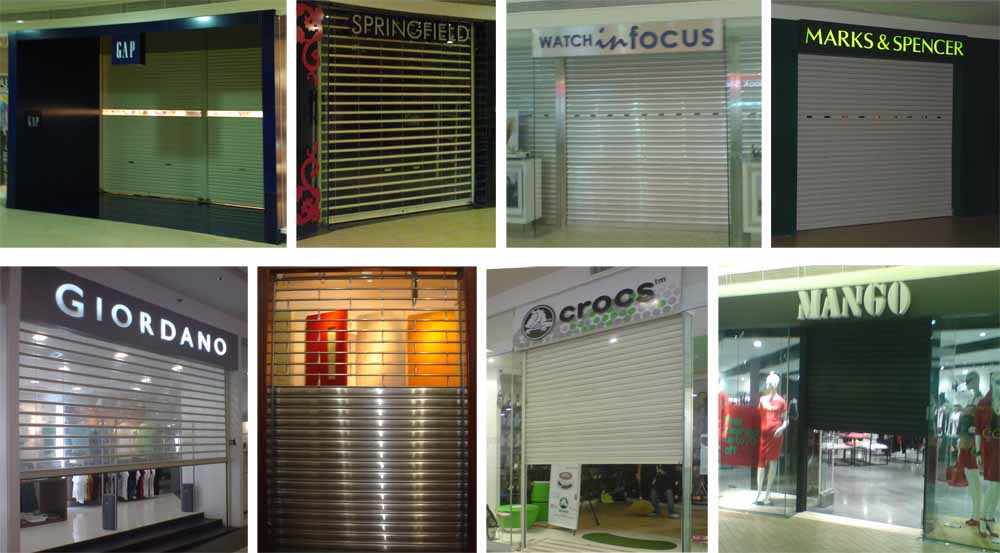

OUR SHUTTERS

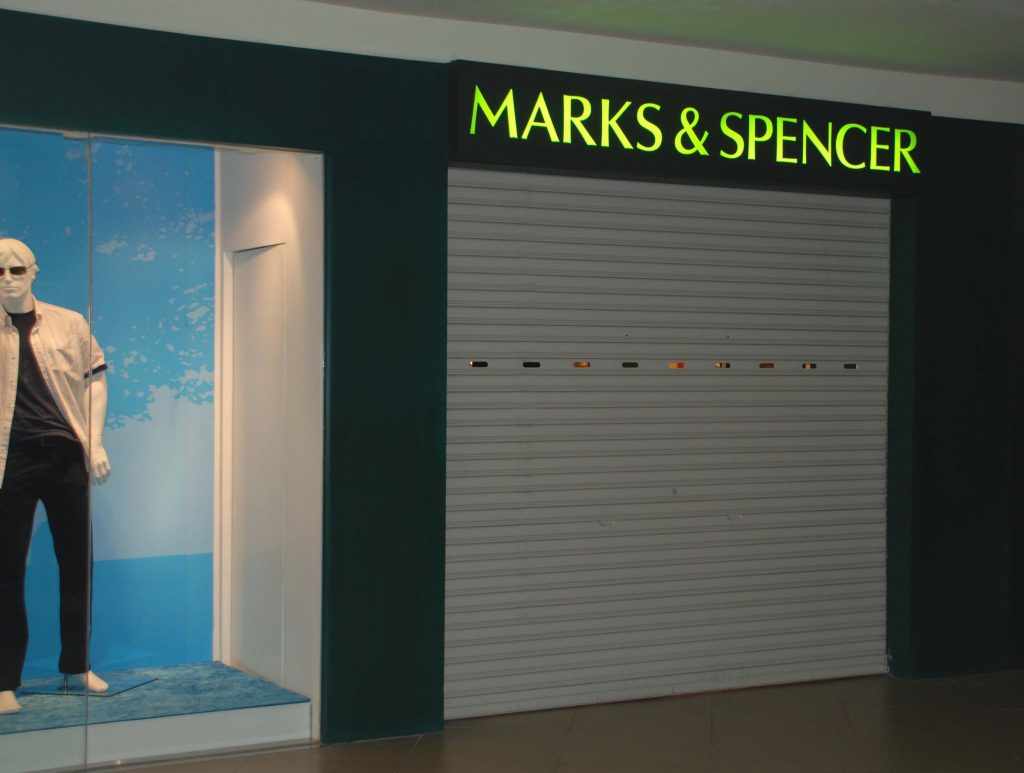

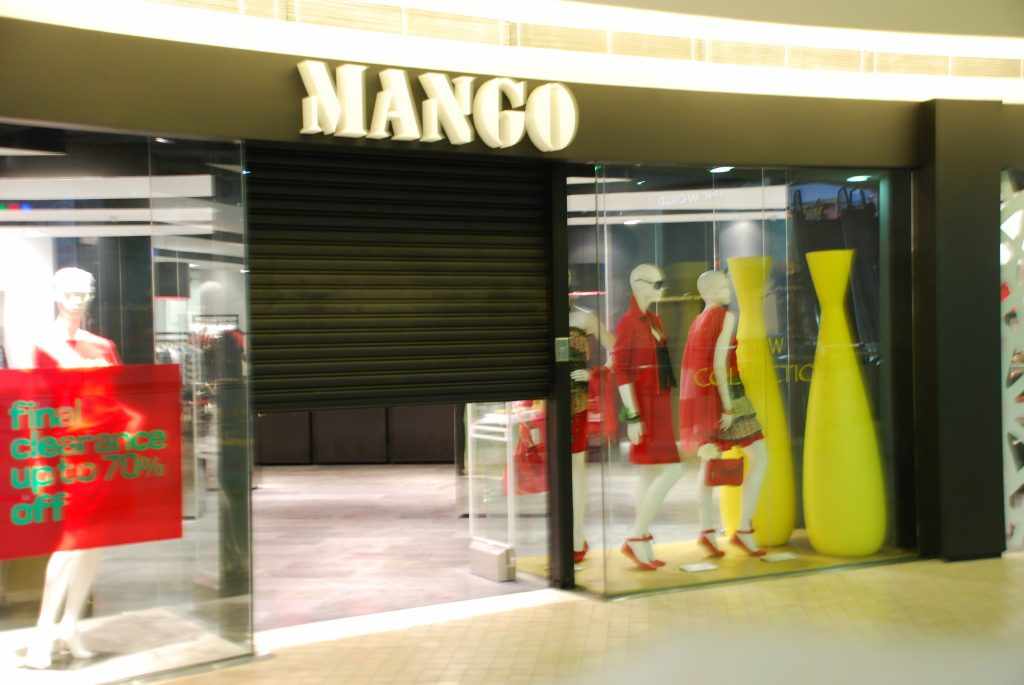

GALVALUME SHUTTERS

The most economical and cost effective shutters, these heavy duty shutters are designed to provide maximum security to your establishments.

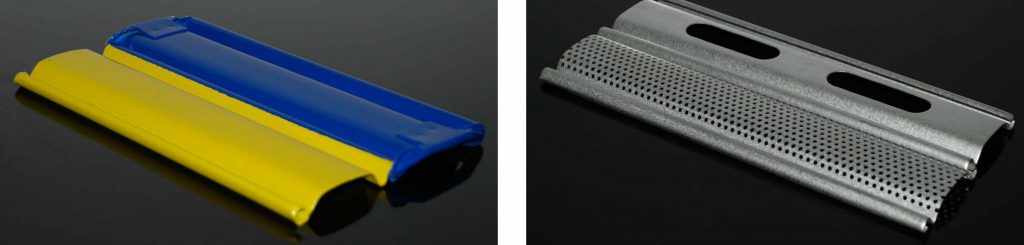

Curtain Slats

• 75mm C-type Galvalume
• 100mm C-type Galvalume
•  Available in Ga.24, Ga.22, Ga.18, and Ga16 thickness

Size

• Maximum of 14 meters width (single panel) ; Minimum of 0.75 meters width (single panel)

Finish

• Galvalume Steel, Lacquer Painted, Acrylic Painted or Powdercoated

Optional Accessories

• Perforated curtains or vent holes for ventilation purposes
• Galvalume wicket door for service entry

Applications

• Commonly used but not limited to commercial and retail stores, loading bays, warehouses and factories

ALUMINUM SHUTTERS

Security and elegance are brought to you by these aluminum shutters. These types of roll-up shutters meet a diversity of commercial and residential application requirements.

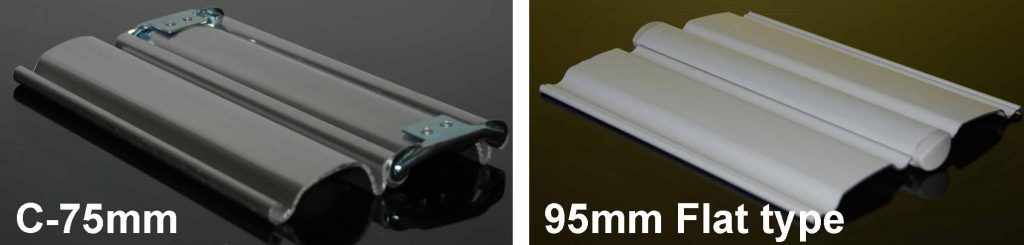

Curtain Slats

• 75mm C-type Anodized Aluminum ; 2.0mm thickness
• 95mm Flat-Type Powdercoated Aluminum; 1.0mm thickness

Size

• Maximum of 6.4 meters width (single panel) ; Minimum of 0.75 meters width (single panel)

Finish

• Anodized Aluminum or Powdercoated (75mm C-Type)
• Powdercoated (95mm Flat-Type)

Optional Accessories

• Vent holes for ventilation purposes (75mm C-Type)
• Polycarbonate Shutters (95mm Flat-Type)
• Aluminum wicket door for service entry (both)

Applications

• Commonly used but not limited to commercial and retail stores, clean rooms, and storage rooms

STAINLESS STEEL SHUTTERS

These shutters are designed to provide you with maximum security. Since these shutters are constructed with stainless steel, they have the advantage in terms of strength, elegance and security compared to other shutters.

Curtain Slats

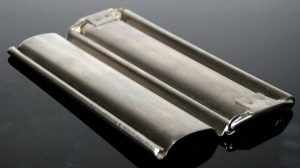

• 75mm C-type Stainless Steel
• Available in Ga.24, Ga.20, and Ga.18 thickness

Size

• Maximum of 10 meters width (single panel) ; Minimum of 0.75 meters width (single panel)

Finish

• Stainless Steel Hairline or Mirror Finish

Optional Accessories

• Vent holes for ventilation purposes
• Stainless Steel wicket door for service entry

Applications

• Commonly used but not limited to commercial and retail stores, clean rooms, chemical rooms, loading bays, storage rooms, banks, hospitals, warehouses and factories

ALUMINUM GRILLES

Ideal for applications which require security and ventilation while maintaining high level of visibility. These are constructed from strong and lightweight aluminum. Its practical application for ventilation and visibility makes it one of the most popular types of roll-up doors today.

Curtain Slats

• Constructed from interlocking aluminum flat bars and round tubes
• Inside these aluminum tube are metal shafting which give the grilles strength for total security
• Venetian type or brick type design

Size

• Maximum of 10 meters width (single panel) ; Minimum of 0.75 meters width (single panel)

Finish

• Anodized Aluminum

Optional Accessories

• Anodized Aluminum grilles wicket door for service entry
• Can be combined with Aluminum or Galvalume close slat shutters

Applications

• Commonly used but not limited to stores inside the shopping malls, store fronts, banks, airports, hospitals and parking entrance/exits

STAINLESS STEEL GRILLES

Ideal for applications which require security and ventilation while maintaining high level of visibility. These are constructed from strong and lightweight aluminum. Its practical application for ventilation and visibility makes it one of the most popular types of roll-up doors today.

Curtain Slats

• Constructed from interlocking stainless steel flat bars and round tubes
• Inside these stainless steel tubes are metal rods which give the shutters maximum strength
• Brick type design

Size

• Brick type design

Finish

• Stainless Steel Mill Finish

Optional Accessories

• Stainless Steel grilles wicket door for service entry
• Can be combined with Stainless Steel or Galvalume close slat shutters

Applications

• Commonly used but not limited to stores outside the shopping malls, banks, airports, hospitals and parking entrance/exits

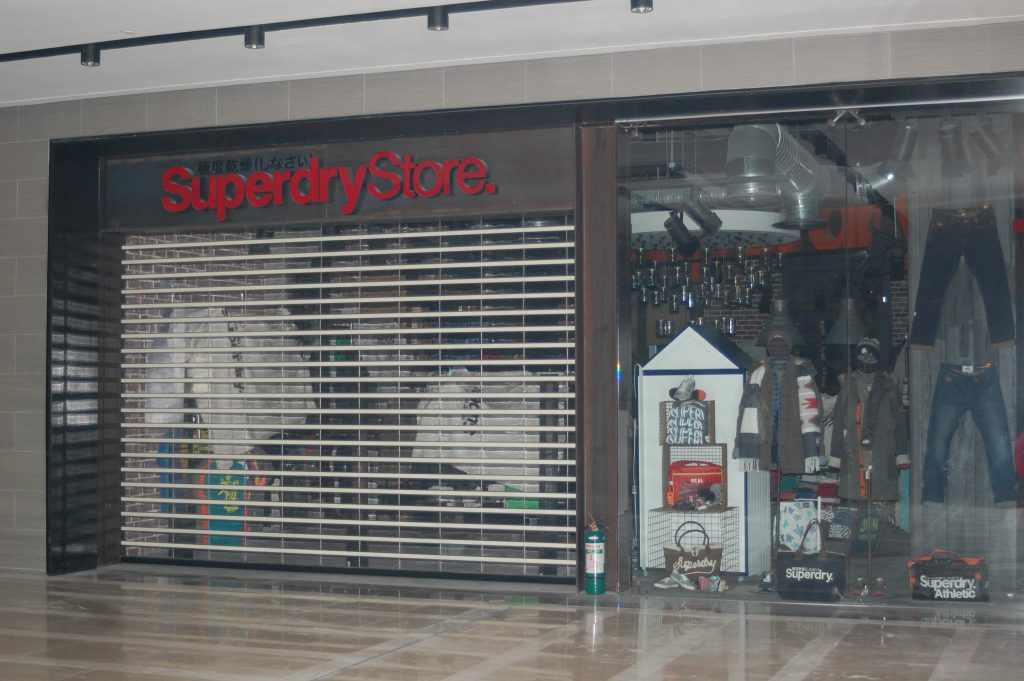

POLYCARBONATE SHUTTERS

These type of shutters are designed to provide security, elegance and transparency. Since the shutters are transparent – providing 80% vision, it is best for advertising products even when the shops are closed.

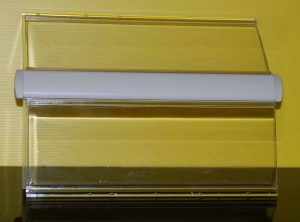

Curtain Slats

• 3mm thick UV-resistant, polycarbonate slats
• 200 times stronger than glass of the same thickness

Size

• Maximum of 5.80 meters width (single panel) ; Minimum of 1.0 meters width (single panel)

Optional Accessories

• Polycarbonate wicket door for service entry
• Can be combined with Aluminum (close slat shutters)

Applications

• Commonly used but not limited to stores inside the shopping malls, banks, airports, and hospitals

Metroshutters™ Parts and Components

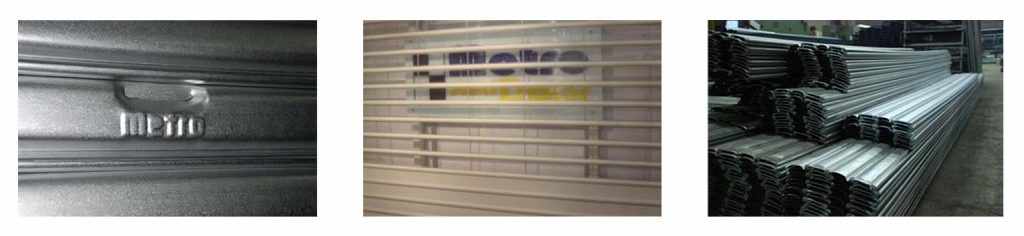

A. CURTAINS

METROshutters™ curtains are manufactured from interlocking, roll-formed “C” profile slats. Available in different slat thickness depending on applications. The ends of each alternate slat are fitted with end locks.

B. GRILLES

METROshutters™ grilles are available in Anodized Aluminum or Stainless Steel. Designs come in brick or venetian pattern.

ALUMINUM GRILLES consists of horizontal tubes ½” diam. with 10mm diam. shafting support, spaced not over 3” apart with vertical connecting links.

STAINLESS GRILLES consists of horizontal tubes ½” diam. with 10mm diam.shafting support, spaced not over 4” apart with vertical connecting links.

C. ENDLOCKS

The end locks are made of cast malleable metal or galvanized steel, spot-welded to both ends of alternate slats, designed to prevent lateral movement of the slats and allow for a smooth operation of the shutter.

D. WINDLOCKS

Wind locks are provided for doors with wide openings to prevent curtain from de-alignment due to deflection from wind pressure or other surfaces.

E. BOTTOM BAR

The bottom bar is constructed from two right angled GALVALUME steel bars, each not less than 38mm x 38mm x 2.5mm thick. Between the two right angled GALVALUME steel bars is sandwiched the bottom slat of the curtain, which is securely welded into position. METROshutters™ bottom bar is designed to place the padlock holder, weather stripping and/or safety device.

F. BOTTOM BAR (GRILLES)

ALUMINUM GRILLES is constructed of extruded tubular aluminum bar of not less than 1.5mm x 45mm x 75mm.

STAINLESS GRILLES is constructed of stainless rectangular tube of not less than 1.2mm x 45mm or 2 pieces of stainless angle bar of 1/8” x 1 ½” x 1 ½”

G. GUIDES

METROshutters™ guides are formed using GALVALUME steel channels with sufficient depth to retain the curtain in place under the horizontal pressure; it also prevents ends of curtain from de-aligning from guide slots. Top sections shall flare for smooth entry of curtains. Stops shall be provided to limit the curtains from moving beyond the guides. METROshutters™ guides are featured with Polyvinyl Chloride strip to act as a wear strip and to prevent steel to steel contact with the curtain and guide allowing for longevity and quiet operation

H. DRUM BARREL and SPRING COUNTERBALANCE

Curtain shall coil on a barrel supported at end of opening on brackets and be balanced by helical springs. The drum is made from m/s tube of proper thickness and diameter corresponding to the size of the curtain and then is capped at both ends. The wall thickness is designed sufficiently to limit deflection. Within the barrel, an oil-tempered, helical, counter balancing steel spring, shall be installed which is capable of producing sufficient torque to assure easy operation of the door.

I. HOODS

Hoods are manufactured from Galvanized Aluminum Sheet, 0.7mm thick. It is formed to fit contour of end brackets, all top and bottom edges are reinforced with rods or angle bars, and then fastened to brackets or angle bars. Hoods of more than 3.00 meters in length shall have intermediate supporting brackets.

J. VENTILATION/PERFORATION

METROshutters™ also offers fully perforated slats of 3mm in diameter, providing a see through effect as well as allowing for increased ventilation. Another option that METROshutters™ offers are slats punched with vent holes of 100mm x 25mm, also for the purpose of ventilation and vision.

K. SHUTTERLOCK

As a standard, METROshutters™ manually operated and chain operated roll-up doors are equipped with two locking systems.

A center lock located at waist height, locking device on the inside and key operated from the outside.
In addition, two padlock holders are welded at the base of the side guide and

bottom bar for added security.
For motor-operated roll-up door or grille, PADLOCK HOLDERS are provided only upon request.

L. WICKET DOOR

Wicket door is an optional offered by METROshutters™. It is an accessory to the roll-up door, ideal as service entry, applicable to motorized or chain-block operated roll-up shutters with wide opening. Wicket door swings back when curtain is raised to give a clear, unobstructed opening. METROshutters™ standard wicket door dimension is 1.5mH x .60mW.

Louver Windows

Louvers are commonly installed in doors or used as windows; a louver is basically an assembly of slanted blades designed to permit airflow from one area of the building to another. The amount of air from movement through the louver depends on the louver profile. Metrotech Steel Industries, Inc. manufactures and supplies different types of louvers depending on the requirements of the specific area or architectural specifications.

Louvers Manufactured to Fit Your Requirements

Metro louvers are manufactured through a series of metal forming process rather than through a metal roll forming/extrusion process. Our process gives us the flexibility required to custom manufacture your louver requirements according to size, louver profile, design, tolerances, etc.

As our standards for louvers, we manufacture using Ga.18 galvanized steel, however other materials and thicknesses are available.

Why Galvanized Louvers?

Galvanized louvers are economical and effective choice for many applications. Galvanized steel (coated with a layer of zinc) is corrosion resistant and remains rust free for decades. Galvanized louvers have excellent weather resistance, making it suitable for exterior exposure. The zinc alloy coating on galvanized steel is also abrasion and impact resistant, and harder than base steel. Overall, galvanized louvers are stronger than their mild steel or aluminum counterparts.

Metro louvers, as standard, are primer coated. However, we can also supply in powder coated, lacquer painted, or acrylic painted depending on the client’s request and specification.

Galvanized Louver Types

Over the years, Metrotech Steel Industries, Inc. has developed different profiles of louvers depending on its application. Although generally the louvers are custom fabricated to fit your needs, we classified our louvers into several categories:

• Interior Louvers: Recommended for areas requires low velocities of air. Usually installed in interior applications.
• Heavy Duty Louvers: Reinforced to withstand high velocities of air. Recommended for Exterior applications.
• Patented-Storm Louvers: Designed to withstand strong winds and water from entering your building. Recommended for exterior applications.
• Patented-Acoustic Louvers: Insulated to minimize noise/sound while serving its function as ventilation. Recommended for gen-set rooms.

FIRE STOP & LOCKS

Metrotech Steel Industries, Inc. recently ventured into distribution of architectural hardwares which includes fire stopping products and door locks.

PASSIVE FIRE STOPPING PRODUCT:

Pyroplex Ltd is a global leader in the design, manufacture and supply of intumescent passive fire protection products. With distribution outlets worldwide and certification from the leading test houses, customers can have complete confidence when selecting products from the Pyroplex range.
Added to this, certification from leading test houses worldwide means that specifiers and installers can have the utmost confidence when selecting solutions from the Pyroplex range.

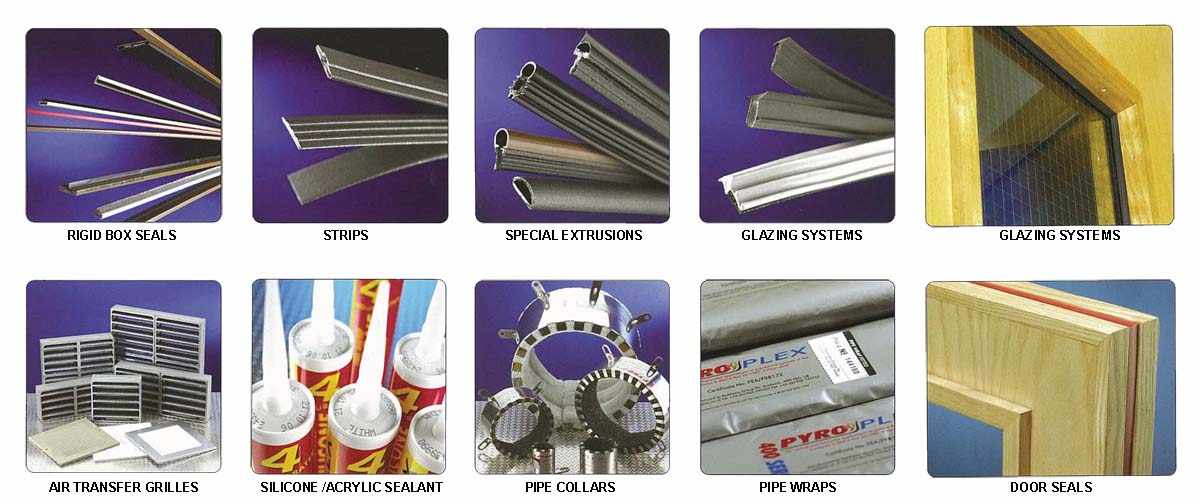

Pyroplex product range includes:

• Intumescent Door & Window Seals
• Fire Rated Grilles
• Fire Bags
• Pipe Collars
• Pipe Wraps
• 4 hrs. Intumescent  Acrylic Sealants
• 4 hrs. Silicon Sealants
• 2 hrs. Polyurethane Foam

Why Customers Choose Pyroplex:

• Extensive product range for door and construction markets
• Large manufacturing plant in Central England
• A firm commitment to the research and development of new products
• Products are tested worldwide to ensure compliance with regulations
• On-site furnace enabling continuous fire testing of products
• 30 years experience in technical extrusion
• Worldwide reputation for design, development and volume manufacture of polymeric profile extrusions

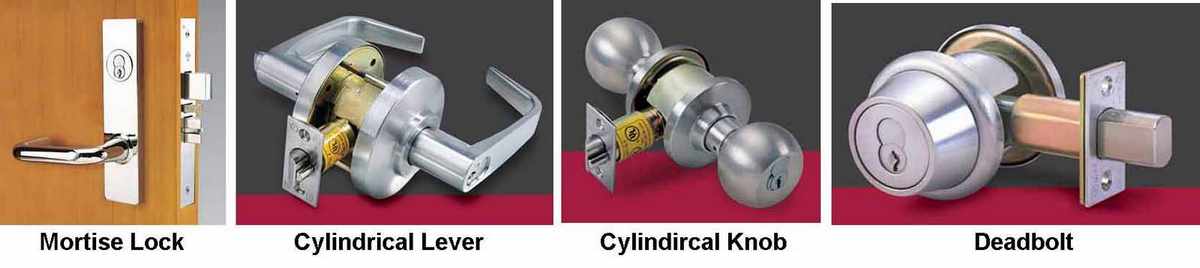

KLACCI, a registered brand of I-Tek Locks Manufacturing, offers an extensive selection of mechanical locks spanning both the commercial and residential markets. Klacci’s drive for design excellence and innovation is only matched by I-Tek’s undeniable manufacturing quality which spans for more than 3 decades. Such a high standard has earned the company the following certificates; ISO9001, UL listed, ANSI, and Barrier Free Accessibility for certain items. Added to this, I-Tek’s testing facility laboratory has been certified and authorized by the American ITS Professional testing Organization and has obtained three professional lock product testing code certificates; ANSI/BHMA A156.2 Bored & pre-assembled locks and latches, ANSI/BHMA A156.5 Auxiliary locks & associated products, ANSI/BHMA A156.13 Mortise locks & latches.

In order to satisfy all customer needs, I-Tek has developed an effective manufacturing process that allows for production flexibility and adjustments, short lead time and product quality maximization. This is achieved through Automatic Assembling Machines and Contemporary Automatic Machines which provide consistent accuracy, rapid moulding, stable performance, limited lead-time and a unified and smooth overall production process.

(ANSI – American National Standards Institute, Inc.)
(BHMA – Builders Hardware Manufacturers Association, Inc.)
